TQ - KTX2-S.V2
[3147]
   1.875,00 € / pcs
(incl. 20% VAT)

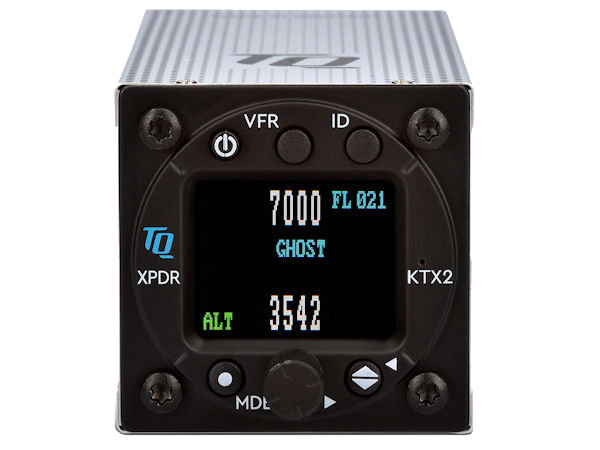

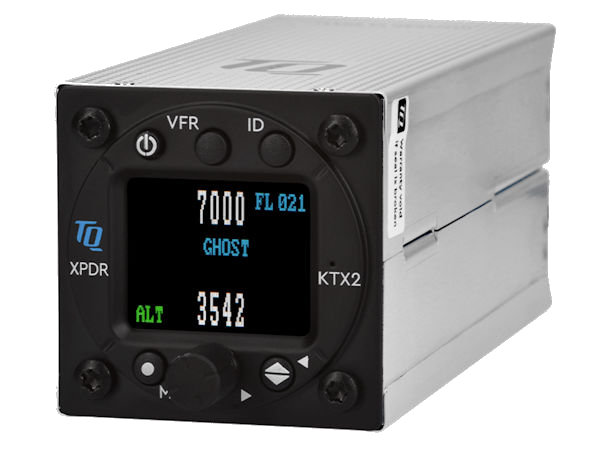

The TQ-KTX2-S.V2 Mode-S transponder for standard 57 mm formats is one of the most modern transponders on the market, featuring low power consumption in a lightweight, compact form.

A brilliant, sunlight-suitable TFT color display, compatibility with the ADS-B Out 2020 Mandate, and intuitive operation result in an excellent price-to-performance ratio. The KTX2's exclusive loop-through antenna eliminates the need to install a second antenna for any ADS-B In hardware.

  • ADS-B Out capable with Retrofit-Kit
  • TFT colour display
  • suitable for sunlight
  • compact
  • light
  • minimal power consumption
  • antenna loop-through
  • ETSO, TSO, FCC approval
  • digital technology

General data/basic data

  • Weight: approx. 380 g (0,84 lbs)
  • Dimensions: 63 x 62 x 149 mm (2,5 x 2,4 x 5,86“) Ø 57mm (2,25“) detail

Technical data

  • Operating voltage: 9 - 30 V DC
  • Transmission power: ≥ 24 dBW (250 W)
  • Transmission frequency: 1.090 ± 1 MHz
  • Operating temperature: -20°C ... +55°C
  • Shock: 6 g operation, 20 g break resistance
  • Max. Operating height: 30.000 ft
  • Max. Speed: 250 kt / 463 km/h / 287 mph
  • Type: Mode-S Transponder Class 1 Level 2els
  • Power consumption: 0.2 - 1.0 A (depending on the number of queries)

Certificates

  • Approvals: EASA ETSO / FAA TSO, FCC
  • Concord:
    ETSO-C112d, ETSO-C88a / TSO-C112d, TSO-C88a, EUROCAE ED-26, EUROCAE ED-14F, EUROCAE ED-12C; EUROCAE ED-73E, RTCA DO-181E, ETSO-C166b / TSO-C166b (ADS-B out)
    Software: RTCA DO-178C / ED12C Level D
    Hardware: RTCA DO-254 / ED80 Level C
  • Environment: RTCA DO-160G / ED-14G


1875 / pcs
(incl. 20% VAT)
