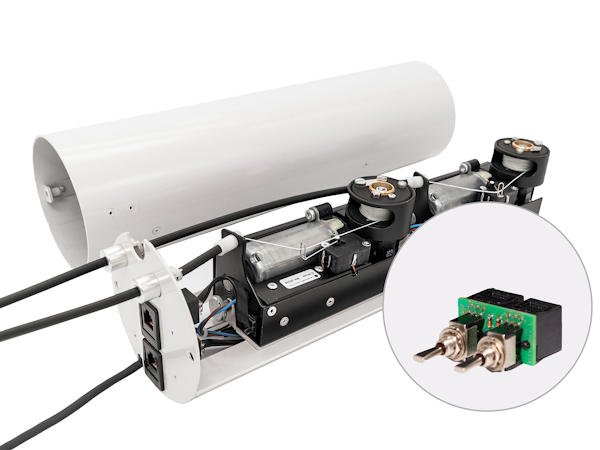

The new E-Winch with a detachable drum

• wing span adjustment
• Detachable line drum
• Adjustable clutch, preadjusted
• Small size
• Low power consumption
• Reliable electronics
• Extremely short cleaning time, 8-10 Seconds / 8m length
• Simultaneous cleaning with both Bugwipers possible
• Better controlling by new control unit
• Mounting support for easy attaching and detaching of the E-Winch
• New retrieval Line
• Reasonable Price

Specifications:

• Dimension length x diameter: 151,6x100 mm Diam
• Weight of both E-winches with accessoires: 1600 Gramm
• Voltage: 10-14,5 Volt
• Current, max.: 8,5 A
• Current during operation: unwinding 2,2 A, upwinding 5,5 A
• Circuit breaker for E-winch: 10 A
• Fuse at battery: 15 A
• Cleaning-Speed: 8 Sec./9m length/120-180 km/h

Depending on the type of aircraft, the cleaners are hinged above or below the wing:

• Retrieval line underneath: Alle Antares, alle DG`s, alle Schempp-Hirth-Flugzeuge, alle LS-Flugzeuge, SZD55, Jantar, Kestrel, Libelle, PIK20, Hornet, HpH-Flugzeuge, Jonker
• Retrieval line on top: EB28, EB29, alle Schleicher-Flugzeuge
