AirAvionics VT-2000
[2697]
   2.449,- € / pcs
(incl. 20% VAT)

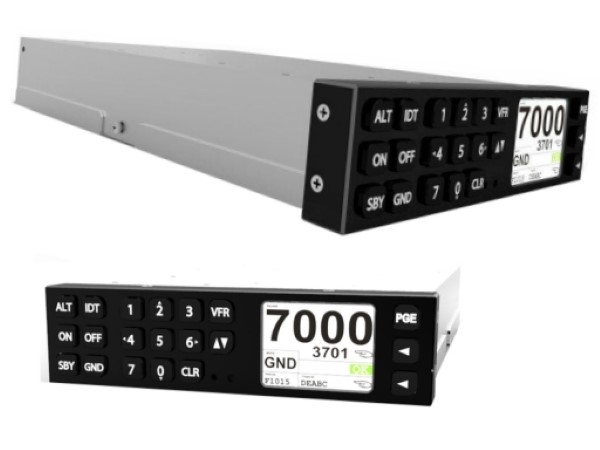

Our VT-2000 is a modern Mode-S/ADS-B Transponder in 6.25" rack format. It can be installed as a direct replacement for the popular Bendix-king KT76 / KT76A/C series of transponders without any changes to pre-existent wiring and mounting trays. The integrated keyboard makes VT-2000 the most easy to use and operate transponder we know of: Squawks are entered amazingly fast and easy.

VT-2000 can be simply installed as a 1:1 retrofit replacement for KT-76 or KT-76A/C Transponders. A special mounting tray is available for new installations. You can either use the integrated internal altitude encoder (alticoder) or connect VT-2000 to any kind of existent alticoder in your aircraft (parallel and serial).

Ergonomic Operation
Keyboard based input requires significantly less operation time than other solutions. You can directly enter a Squawk given by ATC without writing it down. Changing mode or using the IDENT function is just as easy as pushing a button.

Use ADS-B today VT-2000 is capable of sending out ADS-B data without modificatio
ns. ADS-B data can already be utilized by many collision warning systems. The only thing required is the connection of a normal NMEA RS232 GPS-source which is available in nearly any aircraft.

All advantages at a glance
• True retrofit. Installation without adaptor and modification of exsiting wiring harness. Just slide in into existing mounting frame of your KT-76 oder KT-76A / KT-76C.
• Stunning transflective color TFT Display with big Fonts and good readability
• illuminated keyboard with ambient light adaption
• Flexible alticoder options. Internal alticoder and interfaces für external alticoders (serial or parallel)
• Direct-GPS NMEA Interface for ADS-B, no adapters required, no updates required. Install ADS-B in minutes!
• Interfaces for future applications (i.e. ADS-B, TIS)
• Certification base: ETSO-2C112a, ED-73B
• Output power: min. 220 Watt (Class-1) Level 2es (extended Squitter)




Mechanics
• Standard 6.25" Instrumenten-rack
• Compatible zu KT76/a/c
• Mounting Trays available

Display
• 2,1" Color TFT-Display
• Transflektive Display, sunlight readable
• Automatic ambient light adjustment

Alticoder
• Integrated alticoder (25ft resolution)
• Parallel interface
• Serial interface

Energy & Weight
• Input voltage range 10V to 32V DC, no regulators required
• Power consumption typically ca. 0,25A at 12V, max 0,45A
• No active cooling required
• 0,9kg without cable



Adapter
 without Adapter
 Static Port Adapter (+36,00 €)
MinorChange
 without MinorChange
 with MinorChange (+150,00 €)

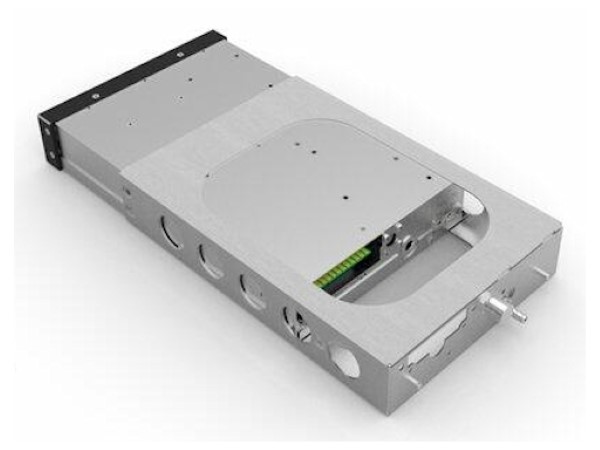

Mounting Tray
 without Tray
 With Tray (+190,80 €)
Version
 KT76
 KT76 A/C
 non
2449 / pcs
(incl. 20% VAT)
