The new E-Winch mit detachable drum. Years of experience enable us to combine proven technology with innovative new steps.
- wing span adjugement
- Detachable line drum
- Adjustable clutch, preadjusted
- Small size
- Low power consumption
- Reliable electronics
- Extremely short cleaning time, 8-10 Seconds / 8m length
- Simultaneous cleaning with both Bugwipers possible
- Better controlling by new control unit
- Mounting support for easy attaching and detaching of the E-Winch
- New retrieval Line
- Reasonable Price

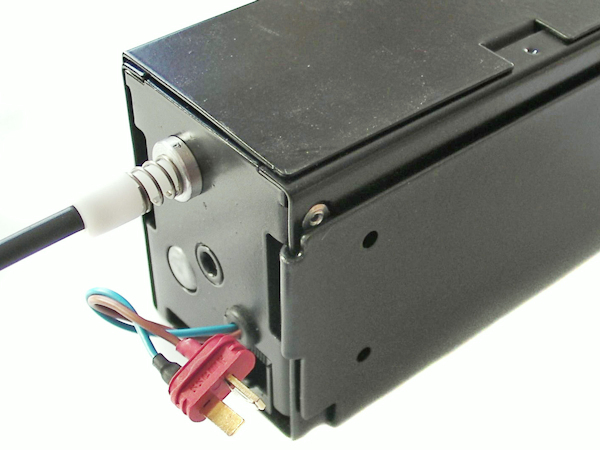

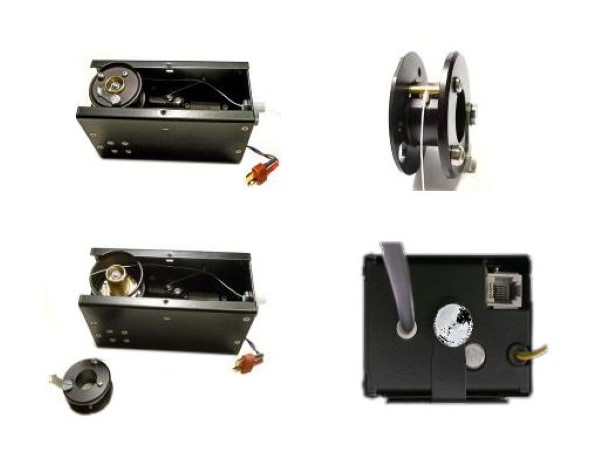

The electric winch comprises a box, enclosing and protecting motor, detachable line drum and line tension safety switch. The box is fixed to the glider by fixing it to a mounting support by a knurled screw. In case of service work, the box can be easily removed from the mounting Support.
Specifications:
- Dimension length x width x height: 151,6x56,7x72 mm
- Weight of both E-winches with accessoires: 1600 Gramm
- Voltage: 10-14,5 Volt
- Current, max.: 8,5 A
- Current during operation: unwinding 2,2 A, upwinding 5,5 A
- Circuit breaker for E-winch: 10 A
- Fuse at battery: 15 A
- Cleaning-Speed: 8 Sec./9m length/120-180 km/h
- Length of line: according to type of glider
Depending on the type of aircraft, the cleaners are hinged above or below the wing:
- Retrieval line underneath: Alle Antares, alle DG`s, alle Schempp-Hirth-Flugzeuge, alle LS-Flugzeuge, SZD55, Jantar, Kestrel, Libelle, PIK20, Hornet, HpH-Flugzeuge, Jonker
- Retrieval line on top: EB28, EB29, alle Schleicher-Flugzeuge
