LX 8080
[2180]
   3.348,00 € / pcs
(incl. 20% VAT)

Color navigation and vario system, fits to standard 80mm hole

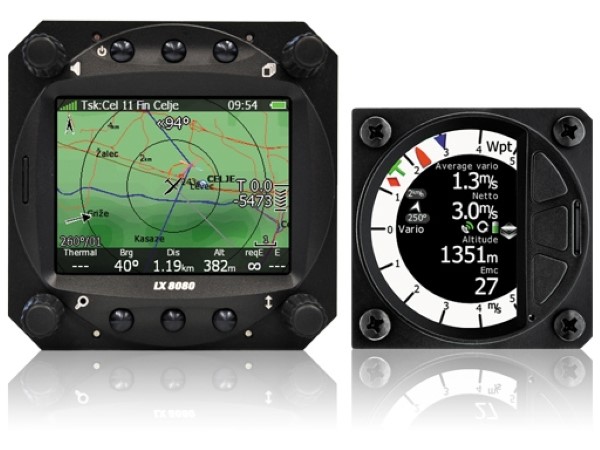

The LX8080 is a high end vario navigation system with extremely bright color display. Simple and logical user interface is designed for top-level competitors, club operation as well as for gliding beginners. Instrument is preloaded with worldwide terrain maps, airspace and airports databases. User friendly data exchange is done using SD Card or USB interface. LX8000 has already integrated FLARM collision avoidance system and flight recorder according to IGC specification for all flights. LX8000 copes with complex tasks with assigned area. During flight optimization according to FAI and OLC rules are shown.




Display unit features
- Extremely bright color display readable in all sunlight conditions with backlight automatically adapted using photo-sensor
- Using Linux operating system (not CE Windows) ensures fast and stable operation of firmware
- 6 push buttons and 4 rotary switches are used for input which compromise well known LX user interface. Remote stick is available optionally for more comfort
- Prepared for multilanguage user interface and integrated help
- Preloaded with worldwide terrain maps, airspace and airport databases
- Simple and user-friendly update of databases using integrated SD Card or USB
- Integrated flight recorder according to high-level IGC specification
- Flights stored in IGC format are downloadable using integrated SD Card
- Support for multiple waypoint and task databases with virtually no limitations
- Manage complex tasks with assigned areas
- Real-time flight optimization according to FAI and OLC rules
- Rich full flight and task statistics
- integrated FLARM collision avoidance system with graphic, sound and voice (optional) presentation

Vario unit features
- Improved well known LX 7007 analog unit
- High precision pressure sensors and 100Hz sampling rate allows very reliable electronic compensation of vario




Color display
- 262144 colors
- 2.8" (7.1cm) diagonal screen
- 320 by 240 pixel resolution
- 1200 cd brightness

Hardware
- PXA270 processor with 520 MHz clock
- 2Gb storage memory
- 6 push buttons and 4 rotary switches
- 16-channel uBlox GPS receiver
- FLARM transmitter and receiver
- Engine noise level sensor
- Pressure altitude sensor

Input and output
- Integrated SD card reader
- Two serial RS232 interfaces
- RS485 bus interface
- FLARM interface
- USB interface




Optional Accessories
- Rear seat device LX8080D
- Remote stick
- High precision compass
- Voice module
- Additional external vario LCD
- External FLARM display
- ADSB receiver (see other aircrafts as flarm objects on map)
- Artificial horizon LX AHRS

Power and battery
- Current drain display unit 430mA at 12V
- Current drain vario unit 120mA at 12V
- Smart power management
- Automatic backlight regulation

Size and weight
- Display unit 82mm x 82mm x 60mm depth, fits to standard fi80mm hole
- Vario unit fi57mm x 115mm depth
- Weight: ~470g (without vario unit)




As a cheaper basic version it is also a "Club" and "Simple" Version available!

  normal version club version simple version
V9 Vario
V5 Vario
IGC approved flight recorder
Built-in GPS
Voice messages
Profile customization with LX Styler
Support for waypoints file with images
Terrain
Map elements (roads, highways, water bodies, railways, town names)
Flarm modul Optional Optional


ADS-B
 without ADS-B
 with ADS-B (+588,00 €)
AHRS
 without artificial horizon
 with artificial horizon (+828,00 €)
Connection cable
 No extra cable
 FLARM (RJ11) (+36,00 €)
 PowerFLARM (RJ45) (+36,00 €)
 PowerFLARM core (DB9) (+36,00 €)
 USB - panel (+60,00 €)
FLARM module
 without FLARM
 with PowerFLARM one antenna (+828,00 €)
 with PowerFLARM two antennas (+978,00 €)
Vario
 V8 - 57mm
 V80 - 80mm (+228,00 €)
WiFi function
 without WLAN
 with WiFi and dongle (+240,00 €)
3348 / pcs
(incl. 20% VAT)
