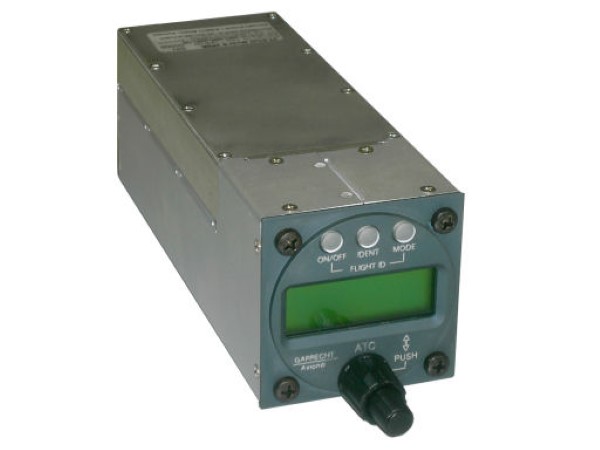

Mode-S Transponder VT-01 UltraCompact, Std. 57mm size

The worlds smallest and lightest Mode-S transponder

Approval: ETSO-2C112a / ED-73B

Functions:
- Mode-A/C and Mode-S, Level 2se, extended Squitter
- ADS-B 1090 ES ready for GPS, no further interfaces required
- Usable for VFR- and IFR-Bedingungen
- Altitude encoder integrated Class 2: max. 15.000 ft
- Simplest operation via turning encoder
- clearly arranged LCD-Display

Technical Data
- Operation voltage: 9 - 32 V DC
- Output: Class 1: min. 150 Watt
- Power consumption at 13,8 V DC:
Standby, TX deactivated: 0,005 A
Standby, Squitter active: 0,16 A
Operation (typical): 0,25 A
- Weight: 0,58 kg
- Dimensions: 61,5 x 61,5 x 168 mm
- Installation in 57mm slot

Delivery contents
- System unit VT-01 UltraCompact
- Connection cable (1,5m) with plug
- Manual
