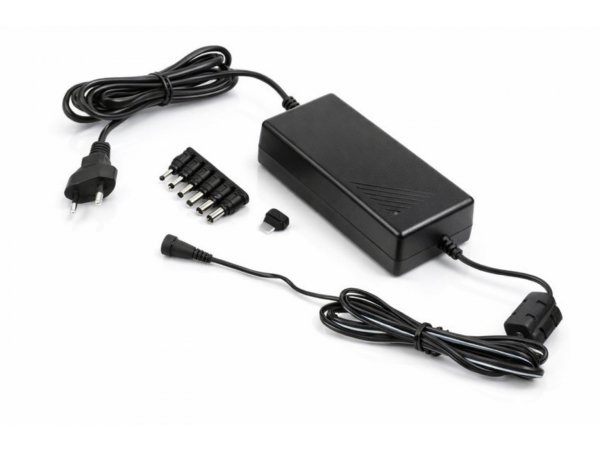

This high-quality primary synchronised switching power supply is adapted for stabilised electrical power supply of TFT-monitors, notebooks, radio transceiver, etc. It’s laying-up to electrical power supply of devices with an input of 6/7,5/9/12/13,5/15 volt of rated voltage on power grids with 100-240 volt of alternating voltage. Because of the power-saving configuration has this switching power supply better coefficient and definite lighter weight as the usual supply source. On the grid side there is a ca 1,75 m long cable set with Euro plug. On the side of the consumer load there is a ca 1,75 long cable set with 2-pole adapter jack – there you can clip the device-specific adapter plug. You can choose from 6 adapter plugs: phone jack 3,5 mm mono, DC-plug 2,35 x 0,75 mm, 3,5 x 1,35 mm, 4,0 x 1,7 mm, 5,0 x 2,1 mm, 5,5 x 2,5 mm, (subject to alterations)
IMPORTANT! Follow absolute the directions for use of the powered device, particularly the details for the grid devices to use. Use please the dictated grid device, which is in the directions written, when it’s forbidden or chancy to use an another grid device!
Technical information:
- Input: 100-240 V AC 50-60 Hz
- Output: max. 60 Watt
- Selectable stabilised outputs:
6/7,5/9/12 volt to max. 5 ampere
13,5/15 volt to max. 3,8 ampere
- Dimensions: ca 135 x 69 x 37 mm
- Weight: ca 480 g
- TÜV-controlled (Technical Control Board) + GS-control symbol
